ruby rails actioncable websockets realtime chat channels

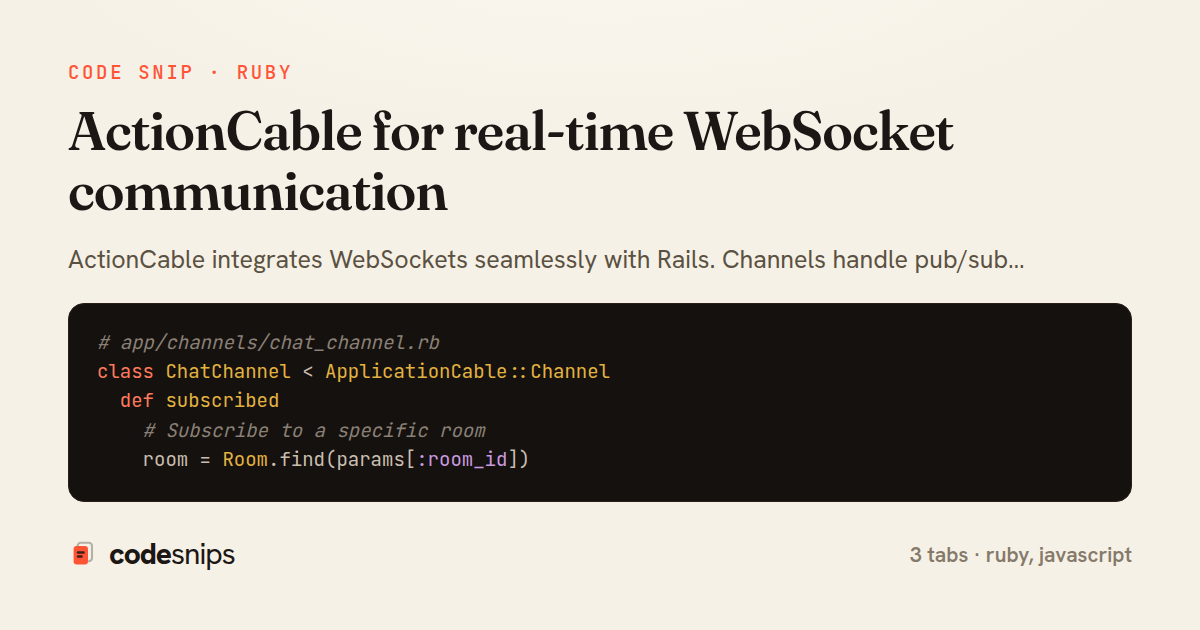

ActionCable for real-time WebSocket communication

Sarah Mitchell Feb 2026

3 tabs

# app/channels/chat_channel.rb
class ChatChannel < ApplicationCable::Channel
  def subscribed
    # Subscribe to a specific room
    room = Room.find(params[:room_id])

    # Authorize user
    reject unless current_user.can_access?(room)

    stream_for room

    # Track user presence
    room.users << current_user unless room.users.include?(current_user)
    broadcast_user_joined(room)
  end

  def unsubscribed
    room = Room.find(params[:room_id])
    room.users.delete(current_user)
    broadcast_user_left(room)
  end

  def receive(data)
    # Receive message from client
    room = Room.find(params[:room_id])
    message = room.messages.create!(
      user: current_user,
      content: data['message']
    )

    # Broadcast to all subscribed clients
    ChatChannel.broadcast_to(room, {
      type: 'message',
      message: MessageSerializer.new(message).as_json,
      user: UserSerializer.new(current_user).as_json
    })
  end

  def typing(data)
    room = Room.find(params[:room_id])
    ChatChannel.broadcast_to(room, {
      type: 'typing',
      user_id: current_user.id,
      user_name: current_user.name
    })
  end

  private

  def broadcast_user_joined(room)
    ChatChannel.broadcast_to(room, {
      type: 'user_joined',
      user: UserSerializer.new(current_user).as_json,
      users_count: room.users.count
    })
  end

  def broadcast_user_left(room)
    ChatChannel.broadcast_to(room, {
      type: 'user_left',
      user_id: current_user.id,
      users_count: room.users.count
    })
  end
end

# app/channels/application_cable/connection.rb
module ApplicationCable
  class Connection < ActionCable::Connection::Base
    identified_by :current_user

    def connect
      self.current_user = find_verified_user
    end

    private

    def find_verified_user
      if verified_user = User.find_by(id: cookies.encrypted[:user_id])
        verified_user
      else
        reject_unauthorized_connection
      end
    end
  end
end

# app/channels/notifications_channel.rb
class NotificationsChannel < ApplicationCable::Channel
  def subscribed
    stream_for current_user
  end

  def unsubscribed
    stop_all_streams
  end

  def mark_as_read(data)
    notification = current_user.notifications.find(data['id'])
    notification.mark_as_read!
  end
end

# Broadcasting from model
class Notification < ApplicationRecord
  belongs_to :user

  after_create_commit do
    broadcast_notification
  end

  private

  def broadcast_notification
    NotificationsChannel.broadcast_to(
      user,
      {
        type: 'notification',
        notification: NotificationSerializer.new(self).as_json
      }
    )
  end
end

# Broadcasting from anywhere
class CommentService
  def create_comment(post, user, content)
    comment = post.comments.create!(user: user, content: content)

    # Notify post author
    notification = post.user.notifications.create!(
      message: "#{user.name} commented on your post",
      link: post_path(post)
    )

    # Real-time notification
    NotificationsChannel.broadcast_to(
      post.user,
      NotificationSerializer.new(notification).as_json
    )

    comment
  end
end

# Streaming from a model
class ActivityChannel < ApplicationCable::Channel
  def subscribed
    stream_from "activity:#{current_user.id}"
  end
end

# Broadcasting to stream
ActionCable.server.broadcast(
  "activity:#{user.id}",
  { type: 'new_follower', follower: follower.as_json }
)

# Periodic broadcasts (app/jobs/server_stats_job.rb)
class ServerStatsJob < ApplicationJob
  def perform
    stats = {
      users_online: User.online.count,
      cpu_usage: SystemStats.cpu_usage,
      memory_usage: SystemStats.memory_usage
    }

    ActionCable.server.broadcast('server_stats', stats)
  end
end

// app/javascript/channels/chat_channel.js
import consumer from "./consumer"

const chatChannel = consumer.subscriptions.create(
  {
    channel: "ChatChannel",
    room_id: document.getElementById('room-id').value
  },
  {
    connected() {
      console.log("Connected to chat channel")
    },

    disconnected() {
      console.log("Disconnected from chat")
    },

    received(data) {
      switch(data.type) {
        case 'message':
          this.appendMessage(data.message)
          break
        case 'typing':
          this.showTypingIndicator(data.user_name)
          break
        case 'user_joined':
          this.updateUsersCount(data.users_count)
          break
      }
    },

    send_message(message) {
      this.perform('receive', { message: message })
    },

    typing() {
      this.perform('typing')
    },

    appendMessage(message) {
      const messagesContainer = document.getElementById('messages')
      messagesContainer.insertAdjacentHTML('beforeend', message.html)
    },

    showTypingIndicator(userName) {
      // Show "{userName} is typing..."
    }
  }
)

// Send message on form submit
document.getElementById('message-form').addEventListener('submit', (e) => {
  e.preventDefault()
  const input = e.target.querySelector('input')
  chatChannel.send_message(input.value)
  input.value = ''
})

3 files · ruby, javascript Explain with highlit

ActionCable integrates WebSockets seamlessly with Rails. Channels handle pub/sub messaging between server and clients. I use ActionCable for chat, notifications, live updates. Channels subscribe clients to streams; broadcasting pushes data to subscribed clients. Connection authorization ensures only authenticated users connect. Channel callbacks—subscribed, unsubscribed, receive—handle lifecycle events. Streaming from models broadcasts ActiveRecord changes automatically. ActionCable scales with Redis for multi-server deployments. Testing channels uses connectionstub and subscriptionstub. Understanding ActionCable's relationship with Turbo Streams unlocks powerful real-time Rails UIs. ActionCable brings WebSocket simplicity to Rails without external services.
