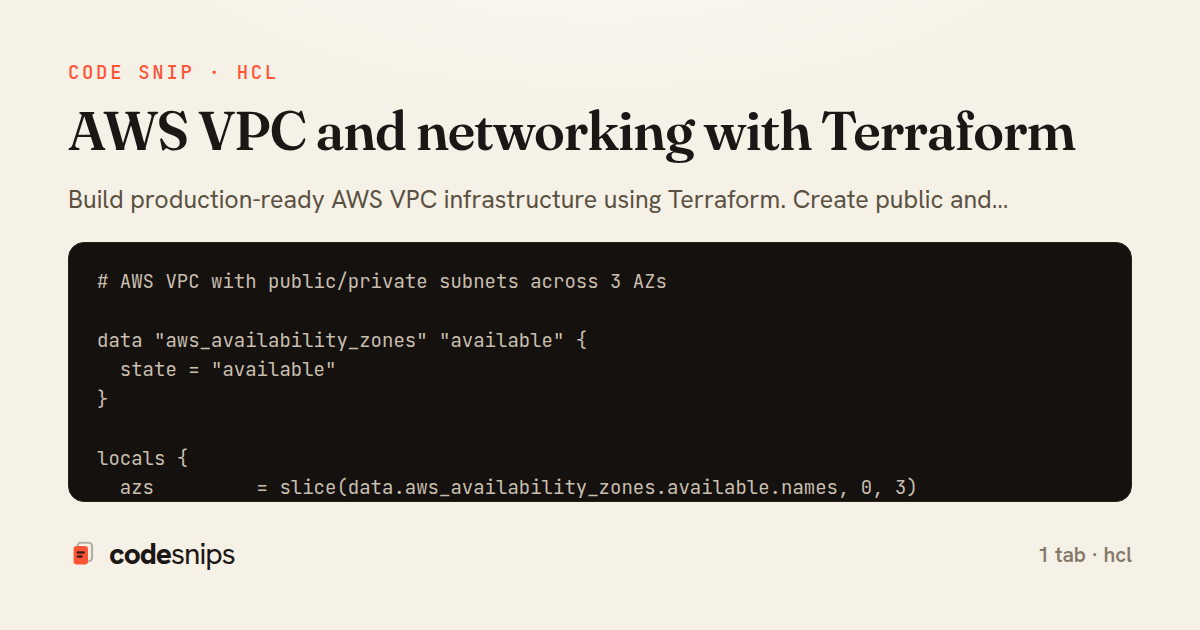

AWS VPC and networking with Terraform

Ryan Nakamura Feb 2026
1 tab
# AWS VPC with public/private subnets across 3 AZs

data "aws_availability_zones" "available" {
  state = "available"
}

locals {
  azs         = slice(data.aws_availability_zones.available.names, 0, 3)
  environment = var.environment
  name_prefix = "${var.project}-${local.environment}"
}

# === VPC ===
resource "aws_vpc" "main" {
  cidr_block           = var.vpc_cidr  # e.g. "10.0.0.0/16"
  enable_dns_support   = true
  enable_dns_hostnames = true

  tags = {
    Name        = "${local.name_prefix}-vpc"
    Environment = local.environment
  }
}

# === Internet Gateway (for public subnets) ===
resource "aws_internet_gateway" "main" {
  vpc_id = aws_vpc.main.id

  tags = {
    Name = "${local.name_prefix}-igw"
  }
}

# === Public Subnets ===
resource "aws_subnet" "public" {
  count = length(local.azs)

  vpc_id                  = aws_vpc.main.id
  cidr_block              = cidrsubnet(var.vpc_cidr, 8, count.index)  # /24 subnets
  availability_zone       = local.azs[count.index]
  map_public_ip_on_launch = true

  tags = {
    Name = "${local.name_prefix}-public-${local.azs[count.index]}"
    Tier = "public"
    "kubernetes.io/role/elb" = "1"  # For K8s ALB controller
  }
}

# === Private Subnets ===
resource "aws_subnet" "private" {
  count = length(local.azs)

  vpc_id            = aws_vpc.main.id
  cidr_block        = cidrsubnet(var.vpc_cidr, 8, count.index + 100)  # /24 subnets
  availability_zone = local.azs[count.index]

  tags = {
    Name = "${local.name_prefix}-private-${local.azs[count.index]}"
    Tier = "private"
    "kubernetes.io/role/internal-elb" = "1"
  }
}

# === NAT Gateway (one per AZ for HA) ===
resource "aws_eip" "nat" {
  count  = length(local.azs)
  domain = "vpc"

  tags = {
    Name = "${local.name_prefix}-nat-eip-${local.azs[count.index]}"
  }
}

resource "aws_nat_gateway" "main" {
  count = length(local.azs)

  allocation_id = aws_eip.nat[count.index].id
  subnet_id     = aws_subnet.public[count.index].id

  tags = {
    Name = "${local.name_prefix}-nat-${local.azs[count.index]}"
  }

  depends_on = [aws_internet_gateway.main]
}

# === Route Tables ===
resource "aws_route_table" "public" {
  vpc_id = aws_vpc.main.id

  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.main.id
  }

  tags = {
    Name = "${local.name_prefix}-public-rt"
  }
}

resource "aws_route_table_association" "public" {
  count = length(local.azs)

  subnet_id      = aws_subnet.public[count.index].id
  route_table_id = aws_route_table.public.id
}

resource "aws_route_table" "private" {
  count  = length(local.azs)
  vpc_id = aws_vpc.main.id

  route {
    cidr_block     = "0.0.0.0/0"
    nat_gateway_id = aws_nat_gateway.main[count.index].id
  }

  tags = {
    Name = "${local.name_prefix}-private-rt-${local.azs[count.index]}"
  }
}

resource "aws_route_table_association" "private" {
  count = length(local.azs)

  subnet_id      = aws_subnet.private[count.index].id
  route_table_id = aws_route_table.private[count.index].id
}

# === VPC Flow Logs ===
resource "aws_flow_log" "main" {
  vpc_id               = aws_vpc.main.id
  traffic_type         = "ALL"
  log_destination      = aws_cloudwatch_log_group.flow_logs.arn
  log_destination_type = "cloud-watch-logs"
  iam_role_arn         = aws_iam_role.flow_logs.arn

  tags = {
    Name = "${local.name_prefix}-flow-logs"
  }
}

resource "aws_cloudwatch_log_group" "flow_logs" {
  name              = "/aws/vpc/flow-logs/${local.name_prefix}"
  retention_in_days = 30
}

resource "aws_iam_role" "flow_logs" {
  name = "${local.name_prefix}-flow-logs-role"

  assume_role_policy = jsonencode({
    Version = "2012-10-17"
    Statement = [{
      Action = "sts:AssumeRole"
      Effect = "Allow"
      Principal = {
        Service = "vpc-flow-logs.amazonaws.com"
      }
    }]
  })
}

# === Outputs ===
output "vpc_id" {
  value = aws_vpc.main.id
}

output "public_subnet_ids" {
  value = aws_subnet.public[*].id
}

output "private_subnet_ids" {
  value = aws_subnet.private[*].id
}

output "nat_gateway_ips" {
  value = aws_eip.nat[*].public_ip
}
1 file · hcl Explain with highlit

Build production-ready AWS VPC infrastructure using Terraform. Create public and private subnets across availability zones, configure NAT gateways, internet gateways, and route tables. Implement network ACLs and VPC flow logs for security and observability.
